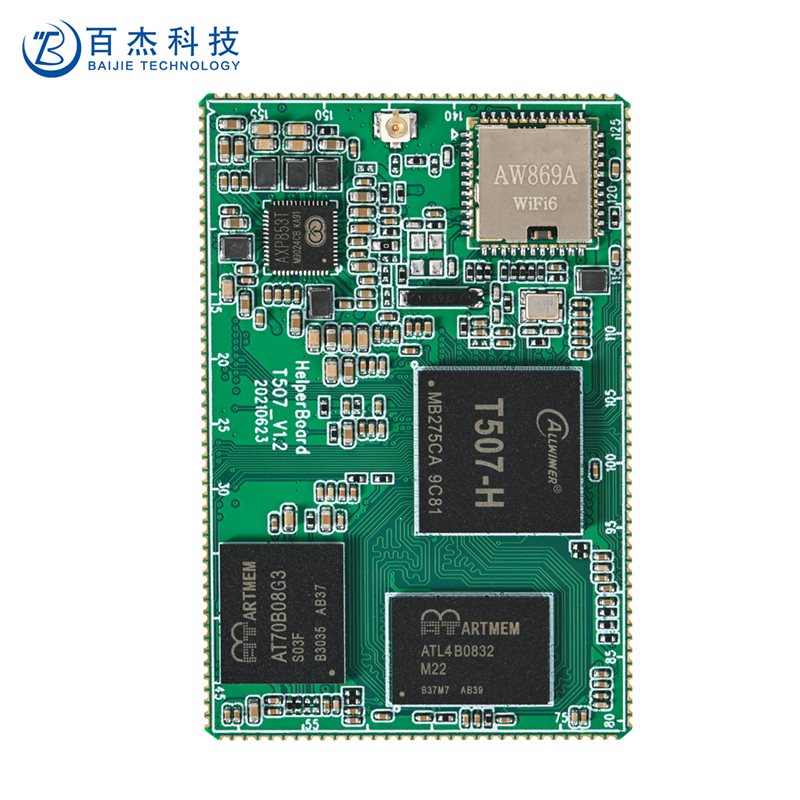

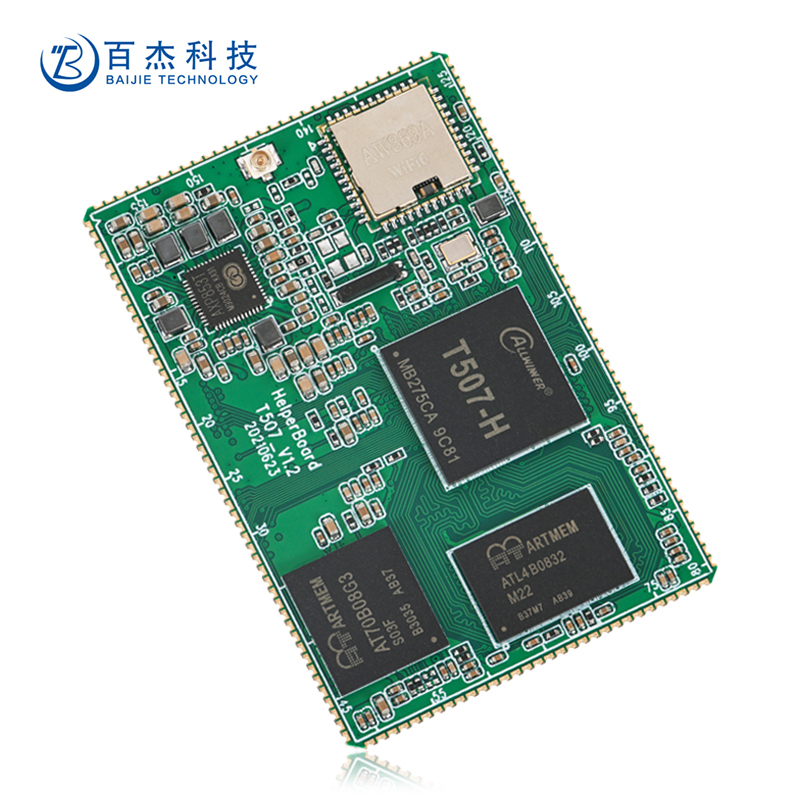

The main features Main control chip: T507 CPU: 64-bit 4-core A53 Maximum main frequency: 1.5GHz Memory: 1G/2G/4G LPDDR4 Storage: 16G/32GB/64GB EMMC Graphics processor: G31 MP2;Supports OpenGL ES3.2, Vulkan 1.1, OpenCL 1.2 Video processor: H.265 Video Decoder 4K@30fps, H.264 video decoder 4K@30fps, VP9 Video decoder 720p@30fps;H.264 Video encoder 1080p@60fps;MJPEG/JPEG Baseline encoder 4K@15fps Decoding: 1080 p @ 60 hz Display: MIpi-DSI interface, Dual-link LVDS Interface, RGB Interface Ethernet: One gigabit MAC, one gigabit MAC WIFI/BT: 5G WIFI/BT 4.2 4G: EC20 module (software support) LCD: support RGB maximum 1920x1200, DUAL LVDS 1920x1200, HDMI 2.0 4K@60Hz USB: 1 channel high-speed USB HOST, 1 channel high-speed USB OTG One earphone output All the way double channel LINEOUT Route 1 leads out the SDIO port Power supply: 5V voltage input, 3.7V battery input System: Android10.0, ubuntu+qt, ubuntu+xfce (Linux does not have hardware codec, does not support hardware acceleration) Operating temperature: -40-85 degrees Celsius Storage temperature: -40-125 ℃ Provide source code, reference design schematic and PCB diagram (ORCAD, PADS format) Provide paid software technical support, hardware customization services, do not provide free technical services System: Android: 10.0, kernel 4.9 Ubuntu 18.04 (XFCE/Core) + QT5 The main application Industrial computer On-board equipment Human-computer interaction equipment Advertising machine Medical care
Main control chip: Allwinner T507
CPU: 64-bit 4-core A53 Maximum frequency: 1.5/1.4GHz
Memory: 1G/2G/4G LPDDR4
Storage: 16G/32GB/64GB EMMC
Graphics processor: G31 MP2;Supports OpenGL ES3.2,Vulkan 1.1,OpenCL 1.2
Video processor: H.265 Video Decoder 4K@30fps, H.264 Video Decoder 4K@30fps, VP9 Video Decoder 720p@30fps, H.264 video encoder 1080p@60fps, MJPEG/JPEG Baseline encoder 4K@15fps
Decoding: 1080 p @ 60 hz
Ethernet: 1-ch Gigabit MAC, 1-ch 100M MAC
WIFI/BT: 5G WIFI/BT 5.0
4G: EC20 and EC25 module
LCD: support RGB maximum 1920x1200, DUAL LVDS 1920x1200, HDMI 2.0 4K@60HZ
USB: 5-ch high-speed USB HOST, 1-ch high-speed USB OTG
2-ch 485_UART
1-ch TF interface
1-ch CAN bus
1-ch LINEIN
1-ch speaker output interface
Built-in USB to serial port, 1-ch UART0 debugging serial port
1-ch Buzzer
Expansion interface: expansion 24-pin IO interface, 20 common IO ports, two 3.3V power supplies, two ground
1-ch RTC clock battery
Power supply: 12V voltage input
OS: Android10.0, ubuntu+qt, ubuntu+xfce(Ubuntu18.04 kernel 4.9)
Yes, we are the manufacturer. we can do both OEM and ODM as you required.
Usually it is 18 months for all the boards and we can change the new board for you immediately if it’s our problem. We can also supply the program updating free.
Yes, we can provide hardware design + software program + pcb layout + casing service for supplier and give a competitive price.
We are specializing in the development board.
Usually it takes about 1~45 days as it depends on the functions you required.Generally, it will take 35 days after receiving your advance payment for mass order. If the products your ordered are the standard products we can send them within 3 days.If the customization products we will send within 45 days.
There is no MOQ is 1 pc.
We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.
