describe
Main control chip: Allwinner A133
CPU: 64-bit 4-core A53
Max frequency: 1.6GHz
Memory: 1G/2G/4G LPDDR4
Storage: 8G/16G/32GB/64GB EMMC
Graphics Processing unit: IMG PowerVR GE8300, Supports OpenGL ES3.2, Vulkan 1.1, OpenCL 1.2
Video Processor: H.265 video decoder 4K@30fps, H.264 video decoder 4K@30fps, VP9 video decoder 720p@30fps, H.264 video encoder 1080p@60fps, MJPEG/JPEG Baseline encoder 4K@15fps
Decoder: 1080P@60Hz

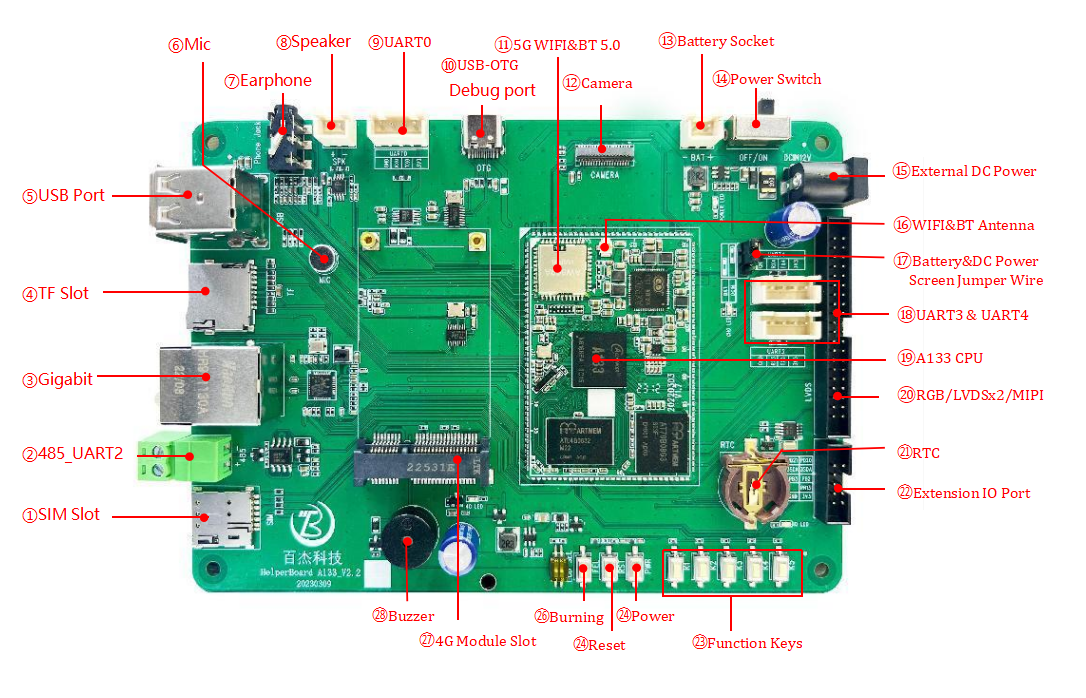

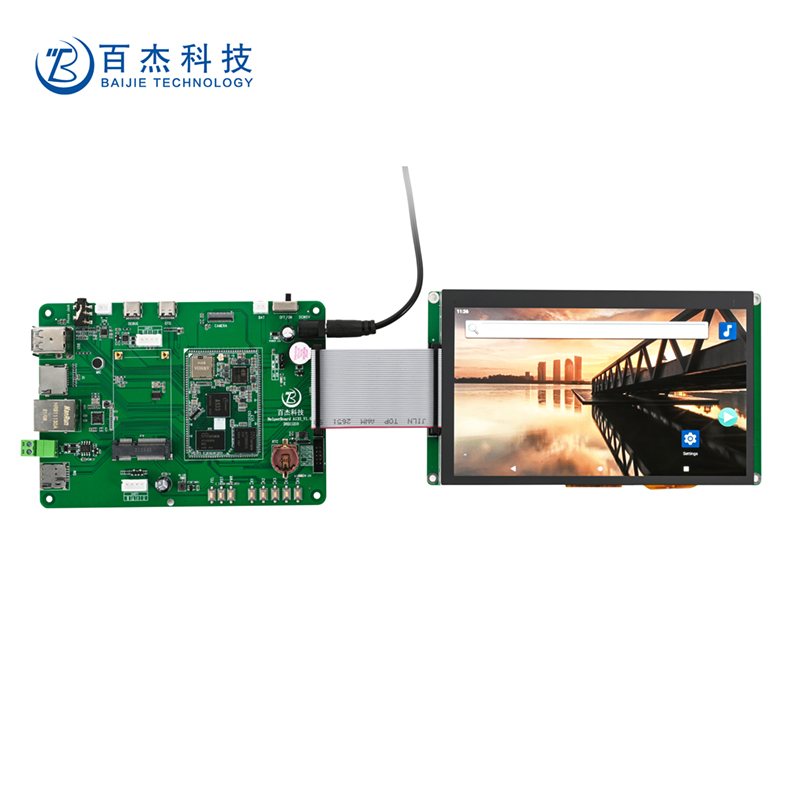

Display: 40-pin MIPI/LVDSx2/RGB multiplexing interface
Ethernet: 10/100/1000M BASE WIFI/BT: 5G WIFI/BT 5.0
Communication module: 4G (EC20 module, EC25 module), 5G (RG200U)
USB: 2 high-speed USB HOST, 1 high-speed USB OTG
1-ch 485_UART2
1-ch TF interface, 1-ch leads to SDIO interface
1-ch MIC interface
1-ch headphone output 1-ch speaker output interface
1-ch built-in USB transfer serial port, 1-ch type C debugging serial port, 1-ch UART0 debugging serial port
1-ch CSI camera interface, can be time sharing before and after dual photography, complete power supply, the maximum support of 13M pixels (Extra charge for the camera)
1-ch buzzer Extension interface: Extension 10 pin IO interface, 6 3.3V normal IO ports, a group of I2C interface,
1 pc 3.3V power supply, and a ground 5 pcs normal function buttons 1-ch RTC clock battery
Power supply: 12v voltage input, battery 3.7v voltage input
System: Android10.0, Ubuntu+qt, Ubuntu+xfce
Yes, we are the manufacturer. we can do both OEM and ODM as you required.
Usually it is 18 months for all the boards and we can change the new board for you immediately if it’s our problem. We can also supply the program updating free.
Yes, we can provide hardware design + software program + pcb layout + casing service for supplier and give a competitive price.
We are specializing in the development board.
Usually it takes about 1~45 days as it depends on the functions you required.Generally, it will take 35 days after receiving your advance payment for mass order. If the products your ordered are the standard products we can send them within 3 days.If the customization products we will send within 45 days.
There is no MOQ is 1 pc.
We test both PCB and key components 100% before delivery. Aim to set up long term cooperation with customers. We provide products with reliable quality.
